24V DC 8 CHANNEL STANDARD SOURCE OUTPUT MODULE
STANDARD FEATURE - NON DIAGNOSTIC.

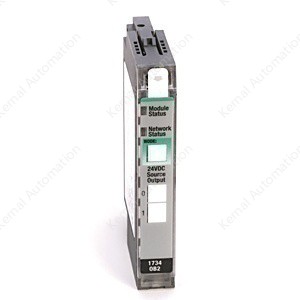

Description: The Allen-Bradley 1734-OB8 is a POINT IO module that features Eight (8) Discrete, non-isolated sourcing output channels. It has One (1) group of channels with Eight (8) outputs per channel. It delivers a nominal actuating voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.
| Weight, approx. | :35.4 g (1.25 oz) |
| Dimensions: | 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.) |
| Module Status indicators | :2 green/red, module / network status |
| Brand: | Allen-Bradley |
| Part Number/Catalog No. | :1734-OB8 |
| Series: | POINT I/O |
| Module Type: | Digital DC Sourcing Output |
| Output Voltage: | 24 Volts DC |
UPC:10612598310279
